    Pre Moulded T-Connectors (Front & Rear) for 36kV 630A (for Type-C Bushing)

    Enquire Now

    Features

    • Safe to touch.
    • Capacitive test point.
    • Faster installation.
    • Non-corrosive and UV resistant
    • In-built stress control offering high stress control properties
    • Outstanding mechanical, chemical & electrical properties.
    • Unlimited shelf-life.
    • In compliance with IEC-60502-4.

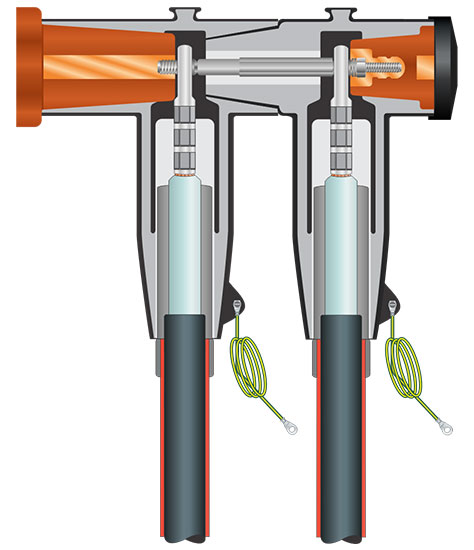

    DSCS Screened, Separable Connection System 36 kV 630 A

    Dimension Chart for Screened, Separable Connection System 630 A 36 kV

    DSCS Technical
    Perameter    		 T Connector 36kV 630A
      Items Parameter
      Cable 18/30kV 26/35kV
      System Voltage 36kV 35kV
      Rated Current 630A 630A
      Partial Discharge 31kV/ < 10pC 45kV/ < 10pC
      Frequency Withstand Voltage 81kV/5min. 117kV/5min.

    Selection Table for Screened, Separable Connection System 36kV 630A with DIN Compression Lugs

    Cross Section 36 kV Diameter Core Insulation Reference Number Conductor Material
    mm2 min. max. Al Cu
    35 25.0 25.0 mm DSCS-6301 DSCS-6312 Enquire Now
    50 26.3 29.5 mm DSCS-6302 DSCS-6313 Enquire Now
    70 26.3 29.5 mm DSCS-6303 DSCS-6314 Enquire Now
    95 26.3 29.5 mm DSCS-6304 DSCS-6315 Enquire Now
    120 30.9 34 mm DSCS-6305 DSCS-6316 Enquire Now
    150 30.9 34 mm DSCS-6306 DSCS-6317 Enquire Now
    185 30.9 34 mm DSCS-6307 DSCS-6318 Enquire Now
    240 36.3 38.5 mm DSCS-6308 DSCS-6319 Enquire Now
    300 36.3 38.5 mm DSCS-6309 DSCS-6320 Enquire Now
    400 41.5 44.7 mm DSCS-6310 DSCS-6321 Enquire Now
    500 41.5 44.7 mm DSCS-6311 DSCS-6322 Enquire Now
