    Pre Moulded T-Connectors (Front & Rear) for 15kV 630A (for Type-C Bushing)

    Enquire Now

    Features

    • Safe to touch.
    • Capacitive test point.
    • Faster installation.
    • Non-corrosive and UV resistant
    • In-built stress control offering high stress control properties
    • Outstanding mechanical, chemical & electrical properties.
    • Unlimited shelf-life.
    • In compliance with IEC-60502-4.

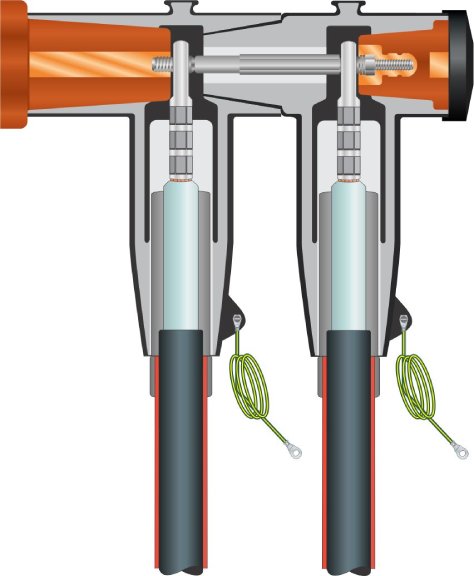

    Pre Moulded T-Connectors (Front & Rear) for 15kV 630A (for Type-C Bushing)

    Dimension Chart for Screened, separable connection system System 15 kV 630 A

    DSSC Items Parameter
    Technical Data Cable 8.7/15kV
      System Voltage 10kV
      Rated Current 630A
      Partial Discharge 15kV/ <10pC
      Frequency Withstand Voltage 39kV/5min

    Selection Table for Screened separable connection system 15kV 630A with DIN compression lugs

    Cross
    Section         		15 kV
    Diameter         		Core
    Insulation         		Reference Number
    Conductor Material
    mm2 min. max. Al Cu
    25 16.0 17.8mm DSCS-6101 DSCS-6112 Enquire Now
    35 17.0 20.0mm DSCS-6102 DSCS-6113 Enquire Now
    50 17.0 20.0mm DSCS-6103 DSCS-6114 Enquire Now
    70 20.0 23.1mm DSCS-6104 DSCS-6115 Enquire Now
    95 20.0 23.1mm DSCS-6105 DSCS-6116 Enquire Now
    120 23.1 26.1mm DSCS-6106 DSCS-6117 Enquire Now
    150 23.1 26.1mm DSCS-6107 DSCS-6118 Enquire Now
    185 25.8 30.8mm DSCS-6108 DSCS-6119 Enquire Now
    240 25.8 30.8mm DSCS-6109 DSCS-6120 Enquire Now
    300 30.4 32.3mm DSCS-6110 DSCS-6121 Enquire Now
    400 33.0 35.4mm DSCS-6111 DSCS-6122 Enquire Now
    500 36.5 37.5mm DSCS-6111A DSCS-6122A Enquire Now
