Heat Shrink Terminations

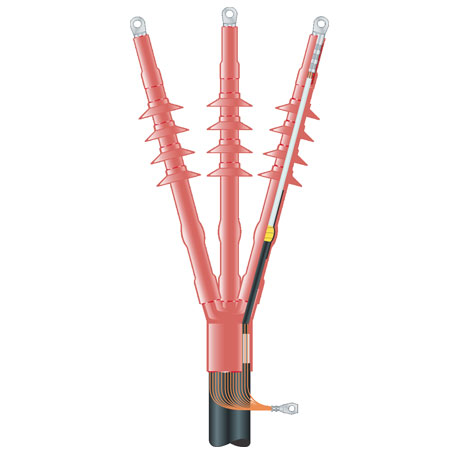

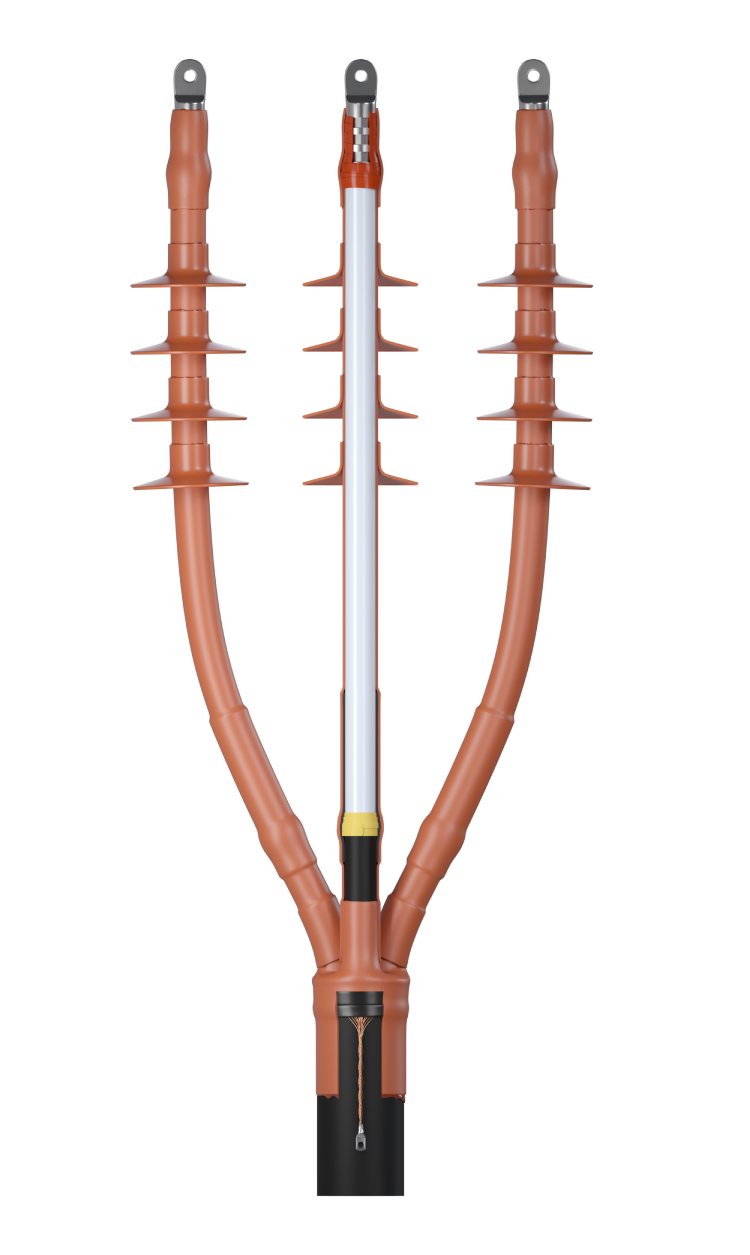

Heat Shrink Terminations upto 36 kV For 3 Core XLPE/EPR Insulated Cable

DENSONS HEAT SHRINKABLE TERMINATIONS UPTO 36 kV For 3 Core XLPE/EPR Insulated Cable

In conformance with IEEE-48, VDE 0278 & IS: 13573.

Heat Shrink Terminations upto 36 kV For 3 Core XLPE/EPR Insulated Cable

Specifications

Test Item of Heat Shrinkable Termination as per IEC-60502-4 / IS:13573

TEST TYPE XSO/E - 2236
A.C. Dry withstand Voltage 75 kV / I min
Impulse withstand Voltage 170 kV / 10 shots
Corona extinction Voltage More than 38 kV

Ordering Information

CABLE SIZE (Sq. mm) FOR 22 kV INDOOR (Kit Code)
3 x 16 - 50 XSE - 21 Enquire Now
3 x 70 - 120 XSE - 22 Enquire Now
3 x 150 - 225 XSE - 23 Enquire Now
3 x 240 - 400 XSE - 24   Enquire Now
CABLE SIZE (Sq. mm) FOR 22 kV OUTDOOR (Kit Code)
3 x 16 - 50 XSO - 21 Enquire Now
3 x 70 - 120 XSO - 22 Enquire Now
3 x 150 - 225 XSO - 23 Enquire Now
3 x 240 - 400 XSO - 24   Enquire Now
CABLE SIZE (Sq. mm) FOR 33 kV INDOOR (Kit Code)
3 x 25 - 50 XSE - 31 Enquire Now
3 x 70 - 95 XSE - 32 Enquire Now
3 x 120 - 185 XSE - 33 Enquire Now
3 x 240 - 400 XSE - 34   Enquire Now
CABLE SIZE (Sq. mm) FOR 33 kV OUTDOOR (Kit Code)
3 x 25 - 50 XSO - 31 Enquire Now
3 x 70 - 95 XSO - 32 Enquire Now
3 x 120 - 185 XSO - 33 Enquire Now
3 x 240 - 400 XSO - 34   Enquire Now
