Heat Shrinkable Terminations up to 36 kV (For 1 Core Aerial Bunched Cable)

XSOS/XSES/AB-12-24-36

Features

  • In house state-of-art compounding technology to provide maximum protection against tacking, corona discharge & dielectric stress.
  • Minimises jointer’s skills.
  • The Products are carefully selected compositions of raw materials to meet the most stringent demands.
  • We also offer tailor-made solutions against specific requirements.
  • Continuous operation temperature-55 0 C to 120 0 C.
  • Corrosion resistant and unlimited shelf life.
  • High resistance to impact and abrasion.
  • Electrolytic grade connectors.

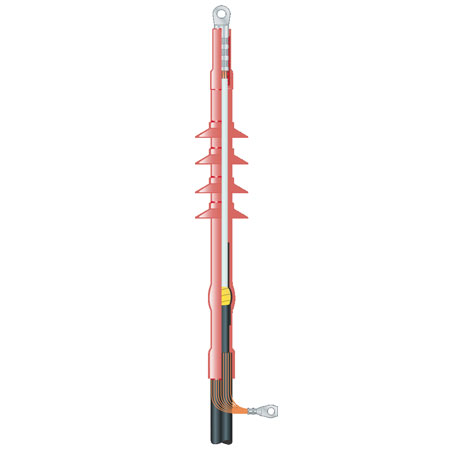

Heat-Shrink-Termination-1-Core

Specifications:

Test Item of Heat Shrinkable Terminations as per IEC-60502-4 / IS:13573

Testing Items U o/U 6.35/11 kV 12.7/22 kV 19/33 kV
A/C withstand test 29kV, 5min, no flashover 58kV, 5min, no flashover 86kV, 5min, no flashover
Partial discharge test 11kV < 10pc (Max.) 22kV < 10pc (Max.) 33kV < 10pc (Max.)
Thermal Cycles (63 cycles) under95-100o C 16kV under95-100o C 32kV under95-100o C 48kV
Impulse voltage test 75kV no flashover 125kV no flashover 170kV no flashover
A/C with stand test 16kV, 15 min, no flashover 32kV, 15 min, no flashover 48kV, 15 min, no flashover
Humidity test (Indoor) No flashover, tracking erosion or mechanical damage occured at 300hrs, 8kV No flashover, tracking erosion or mechanical damage occured at 300hrs, 16kV No flashover, tracking erosion or mechanical damage occured at 300hrs, 24kV
Salt Frog test (Outdoor) No flashover, tracking erosion or mechanical damage occured at 1000hrs, 8kV no flashover, tracking No flashover, tracking erosion or mechanical damage occured at 1000hrs, 16kV no flashover, tracking No flashover, tracking erosion or mechanical damage occured at 1000hrs, 24kV no flashover, tracking

Order Reference:

For 11 kV Indoor Terminations (for AB cable)

11 Kv 1 Core
Indoor
Terminations
Cable Size (mm2) Kit Code
1 x 16 - 50 XSES/AB - 11 Enquire Now
1 x 70 - 120 XSES/AB - 12 Enquire Now
1 x 150 - 300 XSES/AB - 13 Enquire Now
1 x 240 - 300 XSES/AB - 14 Enquire Now
1 x 400 - 630 XSES/AB - 15 Enquire Now
1 x 800 - 1000 XSES/AB - 16 Enquire Now

For 11 kV Outdoor Terminations (for AB cable)

11 Kv 1 Core
Outdoor
Terminations
Cable Size (mm2) Kit Code
1 x 16 - 50 XSOS/AB - 11 Enquire Now
1 x 70 - 120 XSOS/AB - 12 Enquire Now
1 x 150 - 300 XSOS/AB - 13 Enquire Now
1 x 240 - 300 XSOS/AB - 14 Enquire Now
1 x 400 - 630 XSOS/AB - 15 Enquire Now
1 x 800 - 1000 XSOS/AB - 16 Enquire Now

For 22 kV Indoor Terminations (for AB cable)

22 Kv 1 Core
Indoor
Terminations
Cable Size (mm2) Kit Code
1 x 16 - 50 XSES/AB - 21 Enquire Now
1 x 70 - 150 XSES/AB - 22 Enquire Now
1 x 185 - 240 XSES/AB - 23 Enquire Now
1 x 300 - 500 XSES/AB - 24 Enquire Now
1 x 630 - 800 XSES/AB - 25 Enquire Now
1 x 1000 XSES/AB - 26 Enquire Now

For 22 kV Outdoor Terminations (for AB cable)

22 Kv 1 Core
Outdoor
Terminations
Cable Size (mm2) Kit Code
1 x 16 - 50 XSOS/AB - 21 Enquire Now
1 x 70 - 150 XSOS/AB - 22 Enquire Now
1 x 185 - 240 XSOS/AB - 23 Enquire Now
1 x 300 - 500 XSOS/AB - 24 Enquire Now
1 x 630 - 800 XSOS/AB - 25 Enquire Now
1 x 1000 XSOS/AB - 26 Enquire Now

For 33 kV Indoor Terminations (for AB cable)

33 Kv 1 Core
Indoor
Terminations
Cable Size (mm2) Kit Code
1 x 25 - 50 XSES/AB - 31 Enquire Now
1 x 70 - 120 XSES/AB - 32 Enquire Now
1 x 240 - 400 XSES/AB - 33 Enquire Now
1 x 500 - 800 XSES/AB - 34 Enquire Now
1 x 1000 XSES/AB - 35 Enquire Now

For 33 kV Outdoor Terminations (for AB cable)

33 Kv 1 Core
Outdoor
Terminations
Cable Size (mm2) Kit Code
1 x 25 - 50 XSOS/AB - 31 Enquire Now
1 x 70 - 185 XSOS/AB - 32 Enquire Now
1 x 240 - 400 XSOS/AB - 33 Enquire Now
1 x 500 - 800 XSOS/AB - 34 Enquire Now
1 x 1000 XSOS/AB - 35 Enquire Now
