Joints

Heat Shrink Straight Joints Upto 36 kV for 3 Core XLPE/EPR Insulating Cable

Alyamunadensons is a leading heat shrink straight joints upto 36 kv for 3 core xlpe/epr insulating cable manufacturers, suppliers and exporters in UAE. Our team of skilled and qualified professionals are dedicated to design and manufacture innovative and high-quality heat shrink straight joints upto 36 kv for 3 core xlpe/epr insulating cable that guarantee its smooth performance and long lasting service.

Enquire Now

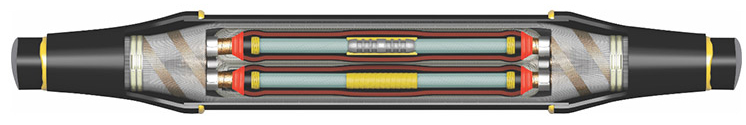

Heat Shrink Straight Joints Upto 36 kV for 3 Core XLPE/EPR Insulating Cable

Specifications

TEST TYPE XSS - 1115 (15kv) TYPE XSS - 2236 (36kv)
A.C. Voltage withstand 35 kV / 1 min . 75 kV / 1 min .
D.C. Voltage withstand 48 kV / 30 min. 144 kV / 30 min.
Impulse Voltage withstand (10+VE & 10-VE Shots) 75 kV 170 kV
Corona Extinction Voltage More than 13 kV More than 38 kV

Ordering Information

CABLE SIZE (Sq. mm) FOR 33 kV (Kit Code)
3 x 35 - 70 XSS - 31 Enquire Now
3 x 95 - 150 XSS - 32 Enquire Now
3 x 185 - 300 XSS - 33 Enquire Now
3 x 400 XSS - 34 Enquire Now
CABLE SIZE (Sq. mm) FOR 22 kV (Kit Code)
3 x 25 - 50 XSS - 21 Enquire Now
3 x 70 - 95 XSS - 22 Enquire Now
3 x 120 - 150 XSS - 23 Enquire Now
3 x 185 - 240 XSS - 24 Enquire Now
3 x 300 - 400 XSS - 25 Enquire Now
CABLE SIZE (Sq. mm) FOR 11 kV (Kit Code)
3 x 16 - 50 XSS - 11 Enquire Now
3 x 70 - 95 XSS - 12 Enquire Now
3 x 120 - 185 XSS - 13 Enquire Now
3 x 240 - 300 XSS - 14 Enquire Now
3 x 400 - 500 XSS - 15 Enquire Now
