Heat Shrink Straight Joint up to 36 kV (For Aerial Bunched Cable)

Densons Heat Shrinkable Straight Joint up to 36 kV (For Aerial Bunched Cable) Heat Shrinkable Straight Joint up to 36 kV

Features

  • In house state-of-art compounding technology to provide maximum protection against tacking, corona discharge & dielectric stress.
  • Minimises jointer’s skills.
  • The Products are carefully selected compositions of raw materials to meet the most stringent demands
  • We also offer tailor-made solutions against specific requirements.
  • Continuous operation temperature-55°C to 120°C.
  • Corrosion resistant and unlimited shelf life.
  • High resistance to impact and abrasion.
  • Electrolytic grade connectors.

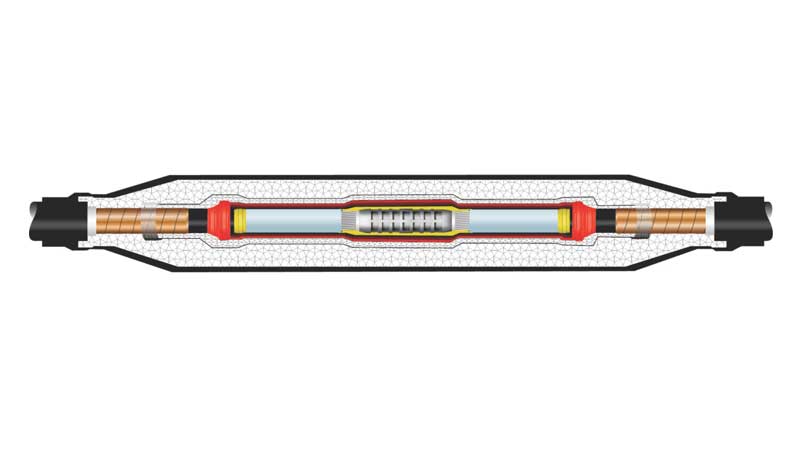

Heat-Shrink-Joint-1-Core

Dimension Chart

Test Item of Heat Shrinkable Straight Through Joint as per IEC-60502-4 / IS:13573

TESTING ITEMS U °/U 6.35/11 kV 12.7/22 kV 19/33 kV
A/C withstand test 29kV, 5min, no flashover 58kV, 5min, no flashover 86kV, 5min, no flashover
Partial discharge test 11kV<10pc (Max.) 22kV<10pc (Max.) 33kV<10pc (Max.)
Thermal Cycles (63 cycles) under95-100o C 16kV under95-100o C 32kV under95-100o C 48kV
Impulses voltage test 75kV no flashover 125kV no flashover 170kV no flashover
A/C with stand test 16kV, 15 min, no flashover 32kV, 15 min, no flashover 48kV, 15 min, no flashover

Order Reference:

Cable Size (mm2) For 11 kV Straight Through Joints (for AB Cable) (Kit Code)
1 x 16 - 50 XSSS/AB - 11 Enquire Now
1 x 70 - 120 XSSS/AB - 12 Enquire Now
1 x 150 - 225 XSSS/AB - 13 Enquire Now
1 x 240 - 300 XSSS/AB - 14 Enquire Now
1 x 400 - 500 XSSS/AB - 15 Enquire Now
1 x 600 - 1000 XSSS/AB - 16 Enquire Now
Cable Size (mm2) For 22 kV Straight Through Joints (for AB Cable) Kit Code
1 x 25 - 50 XSSS/AB - 21 Enquire Now
1 x 70 - 150 XSSS/AB - 22 Enquire Now
1 x 185 - 240 XSSS/AB - 23 Enquire Now
1 x 300 - 500 XSSS/AB - 24 Enquire Now
1 x 630 - 800 XSSS/AB - 25 Enquire Now
1 x 1000 XSSS/AB - 26 Enquire Now
Cable Size (mm2) For 33 kV Straight Through Joints (for AB Cable) (Kit Code)
1 x 35 - 70 XSSS/AB - 31 Enquire Now
1 x 95 - 150 XSSS/AB - 32 Enquire Now
1 x 185 - 400 XSSS/AB - 33 Enquire Now
1 x 500 - 630 XSSS/AB - 34 Enquire Now
1 x 800 - 1000 XSSS/AB - 35 Enquire Now
