    Heat Shrinkable Anti Tracking Straight Boot

    Features

    • Designed for medium voltage applications up to 36 KV
    • Shaped components to meet a variety of configuration requriements
    • Continuous operation temperature: -55° C to 120° C
    • Used in proctecting cable and up to 36 KV against flashover or surges induce during working life in switch gear in and transformer boxes.

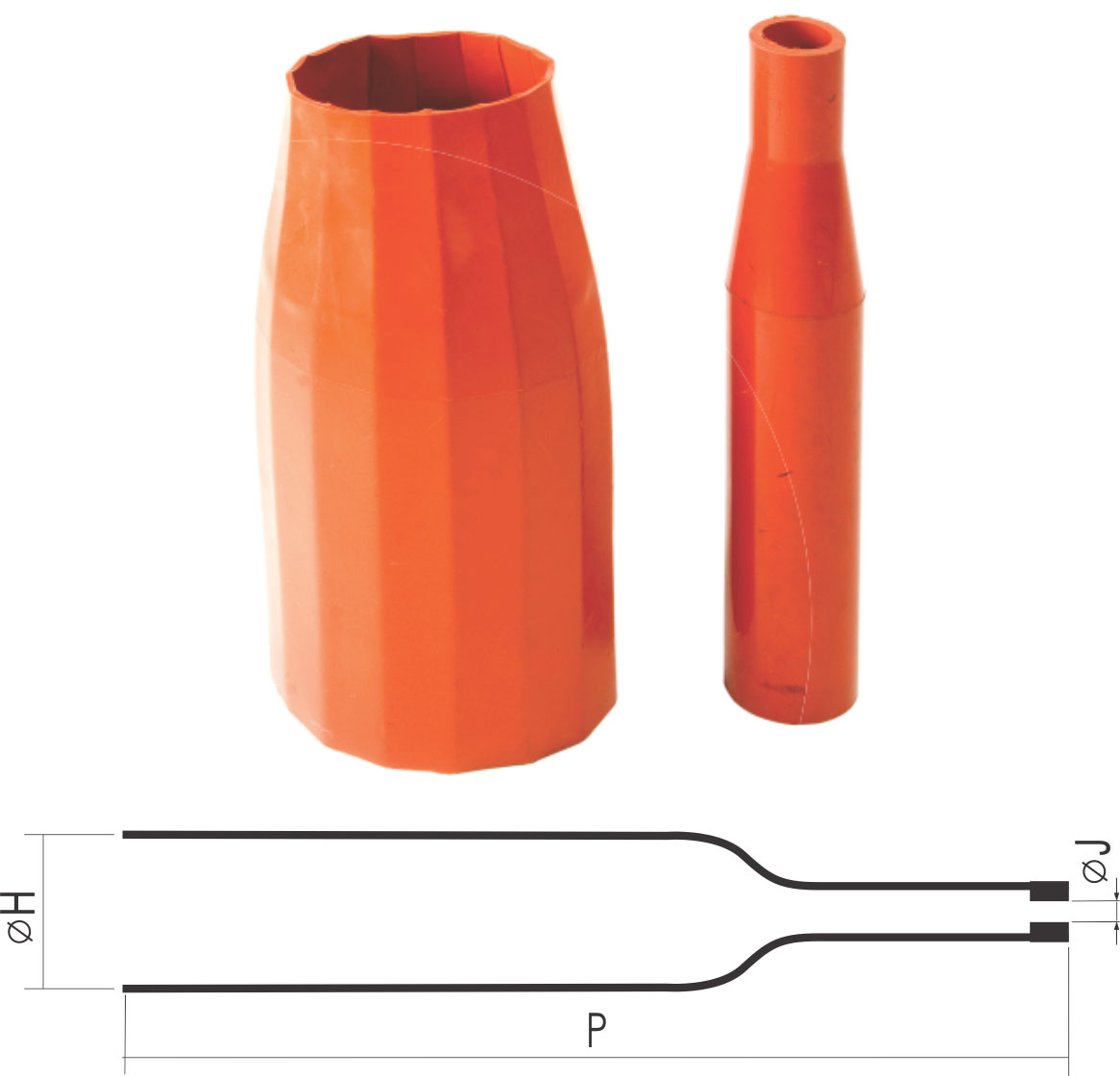

    Heat Shrinkable Anti Tracking Straight Boot

    Technical Data

    Property Requirements Test Method
    Tensile Strength 8N/mm2 (min.) ASTMD 412, ESI09-13
    Elongation 200% (min) ASTMD 412, ESI09-13
    Heat Aging
    (500 hrs. at 1200 C)
    Tensile Strength 7N/mm2 (min.) ASTMD 412
    Elongation 200% (min.) ASTMD 412
    Cold Temperature
    Flex (-400 C)     		No cracking ASTMD 2671
    Electrical
    Dielectric Strength
    		 10 kV/mm (min.) ASTMD 149, IEC 243
    Volume Resistivity 1 x 1012 ohm-cm (min.) ASTMD 257
    Track Resistance Non-Tracking ASTMD 2303
    Chemical Resistance
    Tensile Strength 7N/mm2 (min.) ASTMD 412
    Elongation 200% (min.) ASTMD 412

    Ordering Information

    Code Expanded Recovered Recovered P±10%
    Ø H (max.) Ø J(min.) Ø H (max.) Ø J(min.)
    DSB - 1 80.0 34.0 32.0 19.0 225.0 Enquire Now
    DSB - 2 80.0 58.0 32.0 29.0 225.0 Enquire Now
